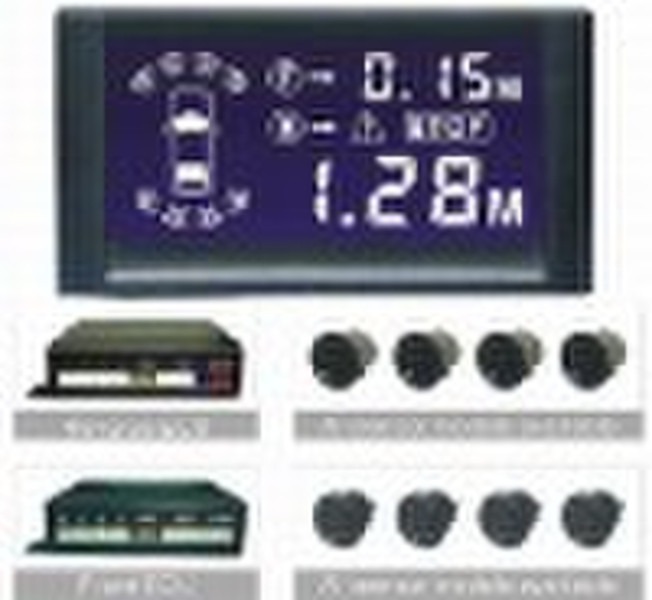

Parking Aid System

Excellent Features of parking sensor system, parking aid: 1. Main front display distance is 15cm, instead of 30cm or above that our competitors can achieve. The perfect solution specially for tight parking spaces. 2. The min. rear display distance is 22cm (or 0.2m), instead of 30cm or above that our competitors can achieve. The perfect solution specially for tight parking spaces. 3. All parking aides can report a wall that is 2.5m behind the car, because the wall can provide strong ultrasound reflection. Our system is able to detect a person standing 1.7m away from the bumper, instead of 1.0m that our competitors can realize. This sensitivity allows drivers to have enough response time to deal with the obstacles. 4. Using RISC high speed processor, the system quickly captures the objects approaching the bumper (response time 90u s) 5. With the diagnostic mode, the buzzer and/or display can alert the driver which one of the sensors is defective. 6. The rear ECU is compatible with all the rear warning buzzers or displays and with different rear sensors, the same situation for front ECU. This helps distributors to minimize their stock. But the rear ECU is not compatible with front warning units.This model consists of: 1)Reverse ECU (electronic control unit) and Front ECUwith 1.2m power cable; 2) 1 warning unit:LCD displaywith 2.5m cable; 3)8 ultrasonic sensors: 4rear sensorswith 2.5m cable and 4 front sensors with 4.5m cable; 4) Accessory: user's manual, 2 double-sided adhesive tapes, 2 quick-on cable clips and 1 drill bit.Technical data: 1) Working voltage: 10.5-16V; 2) Max. power: 5W; 3) Display distance: 0.15 to 2.5m; 4) Max. audible alarm distance: 1.7m; 5) Audible alarm volume: mute, 70dB and 90dB (at 1m) adjustable; 6) Working temperature: -30 +80°CPacking details: 100pcs/ctnN.W.: 15kg G.W.: 16kg Measurement: 50x37x33cm
